Trim pulling
The pulling mechanism guides continuous skeletal trim into the granulator in step with the forming process.
XIAOMA / MATERIAL RECOVERY
XMTSheet-trim granulator
An integrated approach to pulling, granulating, conveying and collecting skeletal trim from sheet forming.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗

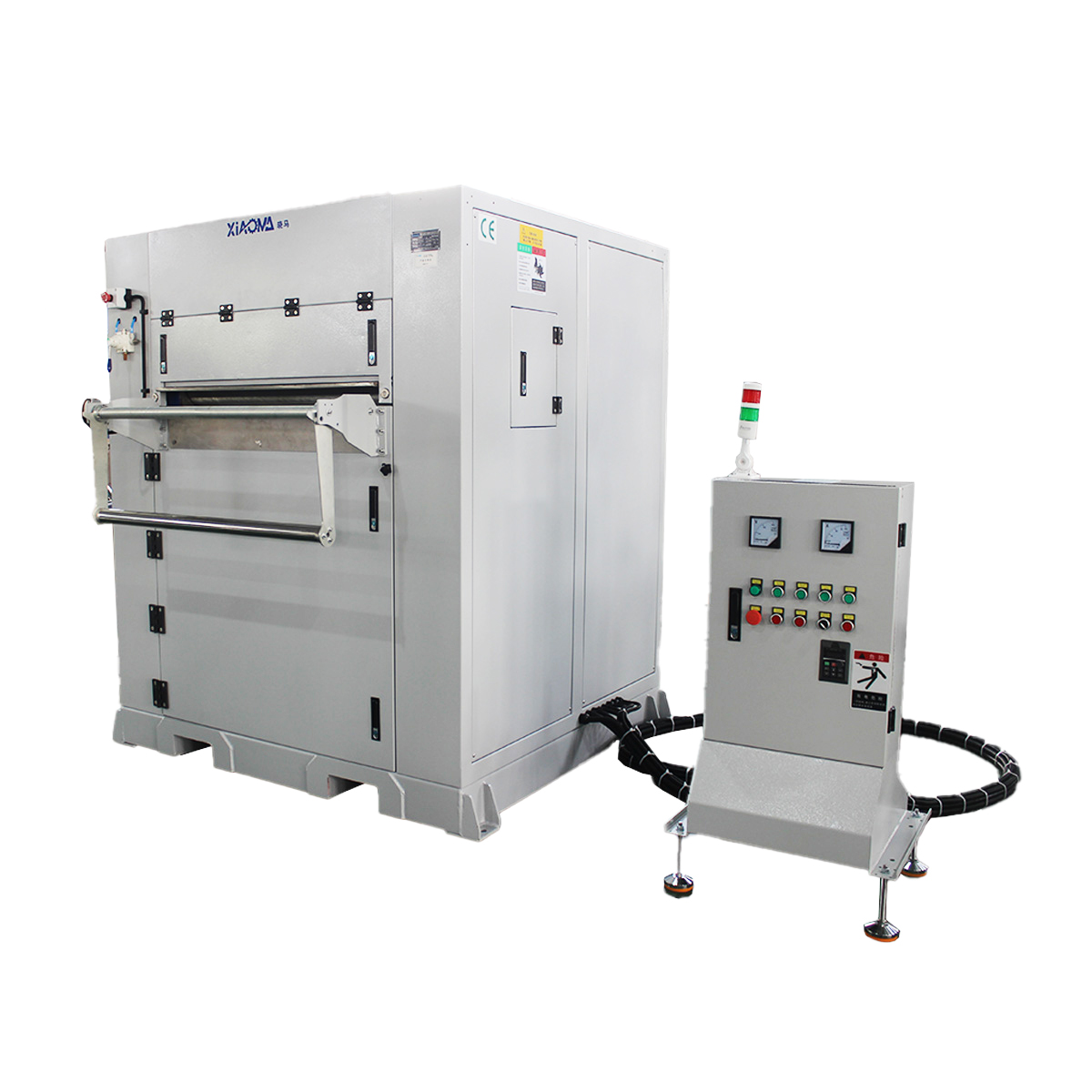

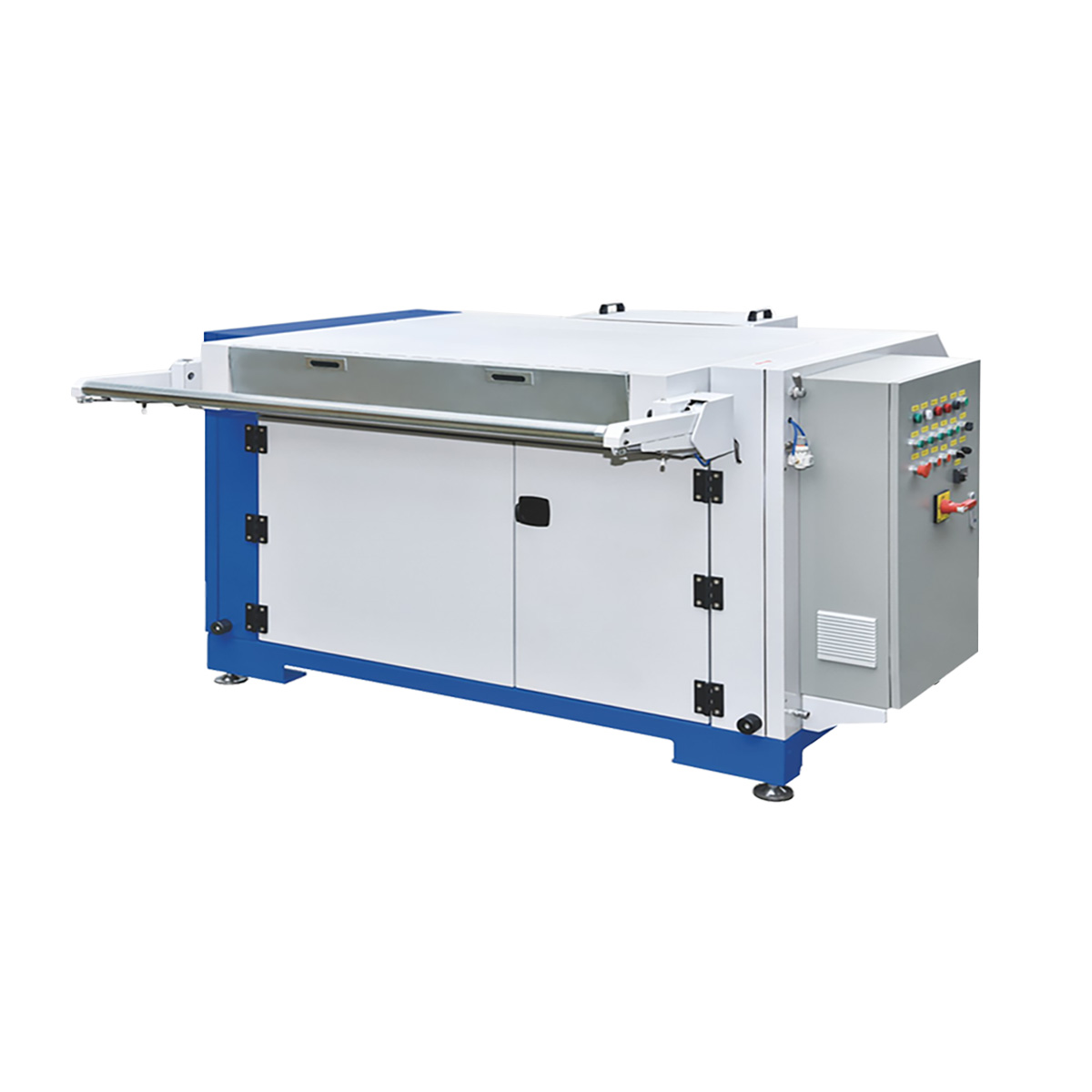

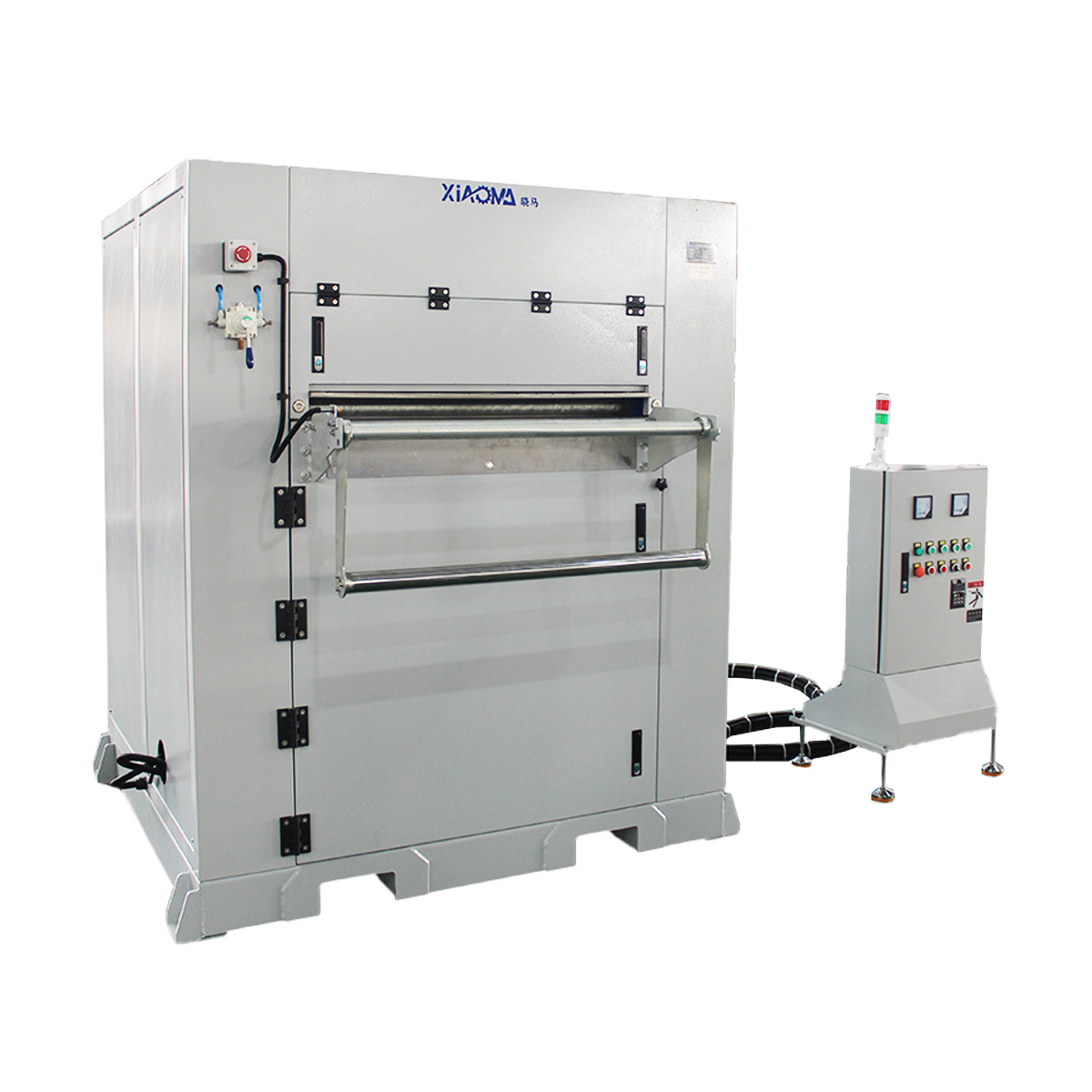

01 / EQUIPMENT VIEWS
A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMT series combines trim pulling, granulation, conveying and collection for skeletal offcuts and limited rejected parts from PP, PET, PS, PLA, PVC and other sheet-forming applications. The supplied material thickness range is 0.2–3.5 mm; confirm the material and model during selection.
Integrated stages
Coordinate granulation, conveying and storage within the available production space.
Acoustic enclosure
An enclosure surrounds the machine; assess noise under the intended feeding and operating conditions.
Sheet compatibility
Provide resin, thickness, width and trim shape to establish feeding and cutter requirements.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMT 200/420A | XMT 300/800A | XMT 300/1000A | XMT 300/1280A | XMT 500/800A |
|---|---|---|---|---|---|
| Drive power (kW) | 4 | 7.5 | 11 | 15 | 37 |
| Traction Power | 0.37*2 | 0.75*2 | 1.1*2 | 1.1*2 | 1.5*1 |
| Number of rotating knives | 6 | 6 | 6 | 12 | 10 |
| Number of fixed knives | 2 | 4 | 4 | 8 | 6 |
| Rotor Diameter (mm) | 200 | 300 | 300 | 300 | 500 |
| Rotor working width (mm) | 420 | 820 | 1000 | 1280 | 800 |
| Manual feeding port size (mm) | — | 600*200 | 1000*200 | 1280*200 | 780*460 |
| Coil material inlet size (mm) | 100*35*2 | 800*125 | 1000*125 | 1270*125 | 790*70 |
| Cutting chamber size (mm) | 200*420 | 300*820 | 300*1000 | 300*1280 | 600*800 |
| Screen aperture (mm) | 8 | 10 | 10 | 10 | 10 |
| Weight (kg) | 550 | 1318 | 1850 | 2160 | 1500 |
| Dimensions (L*W*H mm) | 1580*900*1332 | 1800*1700*1350 | 2000*1900*1350 | 2150*1800*1350 | 2450*1910*2700 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
