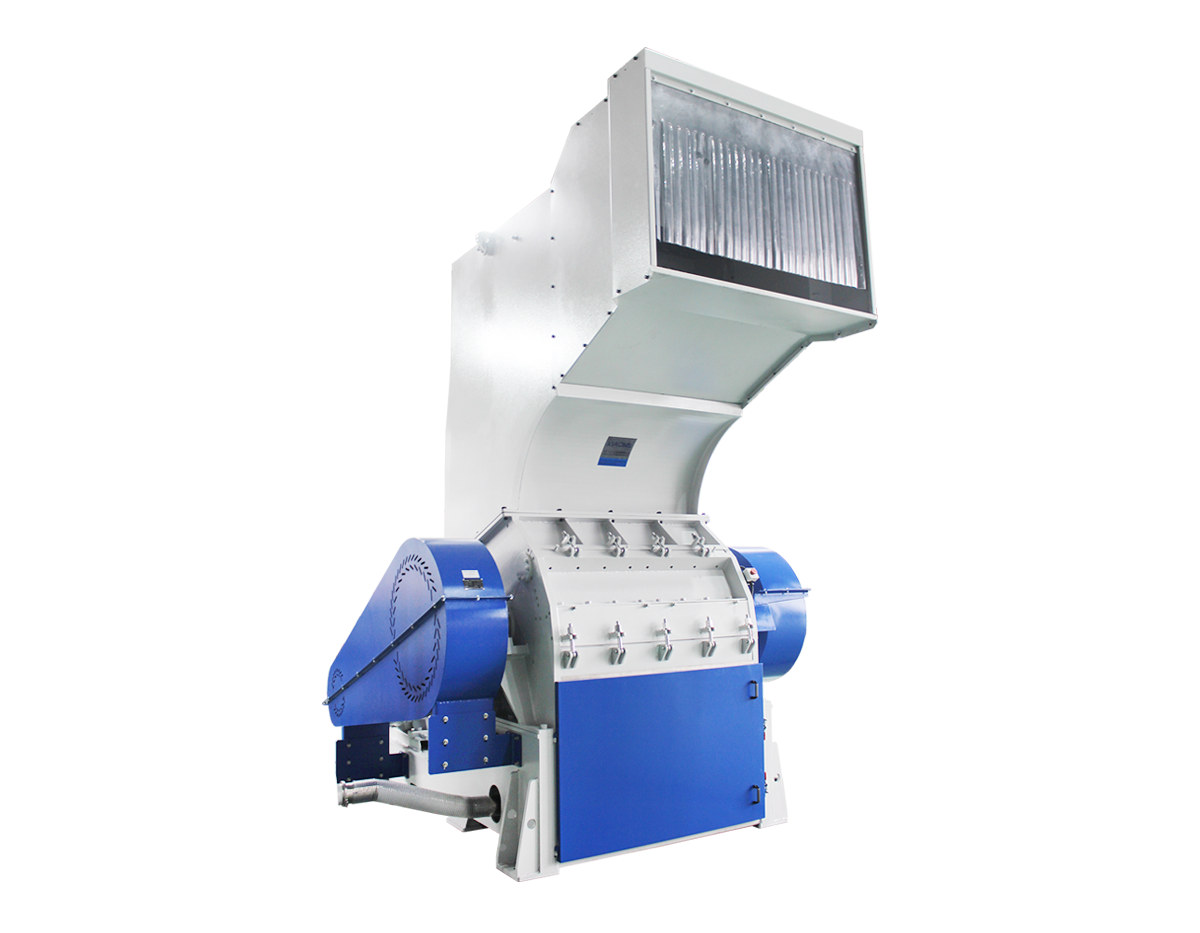

The XMD heavy-duty crusher series is a newly developed model by Xiaoma Company. This model can not only crush the waste generated in injection molding, but also crush pipes, profiles, sheets, components, containers, TV housings, car bumpers, and more. It has the characteristics of economy, durability, easy cleaning, and long service life.
| Model | XMD400/1000 | XMD500/600 | XMD500/800 | XMD500/1000 | XMD500/1200 | XMD600/800 | XMD600/1100 | XMD800/1200 | |
| Drive power | kw | 37 | 30KW/40HP | 37 | 45 | 55 | 45 | 75 | 90 |
| Rotor diameter | mm | 400 | 500 | 500 | 500 | 500 | 600 | 600 | 800 |
| Rotor width | mm | 1000 | 600 | 800 | 1000 | 1200 | 800 | 1100 | 1200 |
| Number knife | 3*2 | 3*2 | 5*2 | 5*2 | 10 | 5*2 | 5*2 | 5*2/7*2 | |
| Number knife | 3*2 | 2*1 | 3*2 | 3*2 | 6 | 3*2 | 3*2 | 3*2 | |
| Size | mm | 550*980 | 530*530 | 650*780 | 650*980 | 960*1190 | 790*780 | 790*1080 | 1140*1170 |
| Crushing cavity diameter | mm | 490*1000 | 580*549 | 600*800 | 690*1000 | 590*1200 | 740*800 | 740*1100 | 950*1200 |
| Weight | kg | 3200 | approximately 2000 | 3150 | 4200 | 5000 | 4500 | 5500 | 7000 |
| Screen aperture | mm | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 12 |
| Dimensions | L*W*H mm | 2100*1800*2500 | approximately 2330*1150*2200 | 2300*1800*2900 | 2300*2000*2900 | 2800*2200*3450 | 2600*1800*3300 | 2600*2200*3300 | 3100*2450*4100 |
We reserve right to change specifications without prior notice.
